Whether it is for your vegetable patch, garden, lawn or ornamental plants, watering is vital. Automotizing this process with a controller or a timer will dispense you from this chore and avoid any oversight! But how and with what equipment? We'll go through the whole question.
- Watering system
- Faucet head
- Remote controller
- Time Range
What are the types of mechanisms available??
Watering your plants or garden is vital. Whether you have a small patio, a vegetable patch or a woodland park, you will quickly realize that it takes time and consumes a significant amount of water! The installation of an automatic watering system is a simple solution for your garden to be watered during your absence or holidays and works in combination with either sprinklers and/or drip irrigators. Depending on your installation, there are two different types of controllers: mechanical watering timers and remote controllers.
This is the easiest way to automate the watering process. A programmers or timer attaches directly to the tap and is coupled to a garden hose.Mechanical or digital, they can be programmed with one or more separate time slots where watering is automatically activated. Some models are equipped with several outputs, called "outlets", to independently power multiple irrigation circuits. These appliances usually operate on batteries.
Also known as a centralirrigationsystem, watering controllers are usually installed in conjunction with a buried or above-ground irrigation system, they are often multi-outlet - a minimum of 2. Directly connected to a specific water supply, they can be used to program an entire panel Of daily, weekly or punctual watering times. Once in configured and ready to go, the controller takes care of everything. Plugged into the power grid, they will never die because the batteries ran out!
Programmers or timer
What are the different types of watering controllers?
It all depends on your installation, the different water sources available and the type of plants/surface to be watered - lawn, vegetable patch, flowers etc.
Automation at it's simplest! Mechanical or digital, the timer allows you to configure a time slot for watering (depending on the model, ranging anywhere from 5 minutes to upwards of 2 hours). Connected directly on the tap, it fits perfectly between it and the garden hose. Just turn the knob to start watering, and it will automatically turn off at the end of the set time. Both 1 or 2 outlet timers are widely available.
Single valve controller

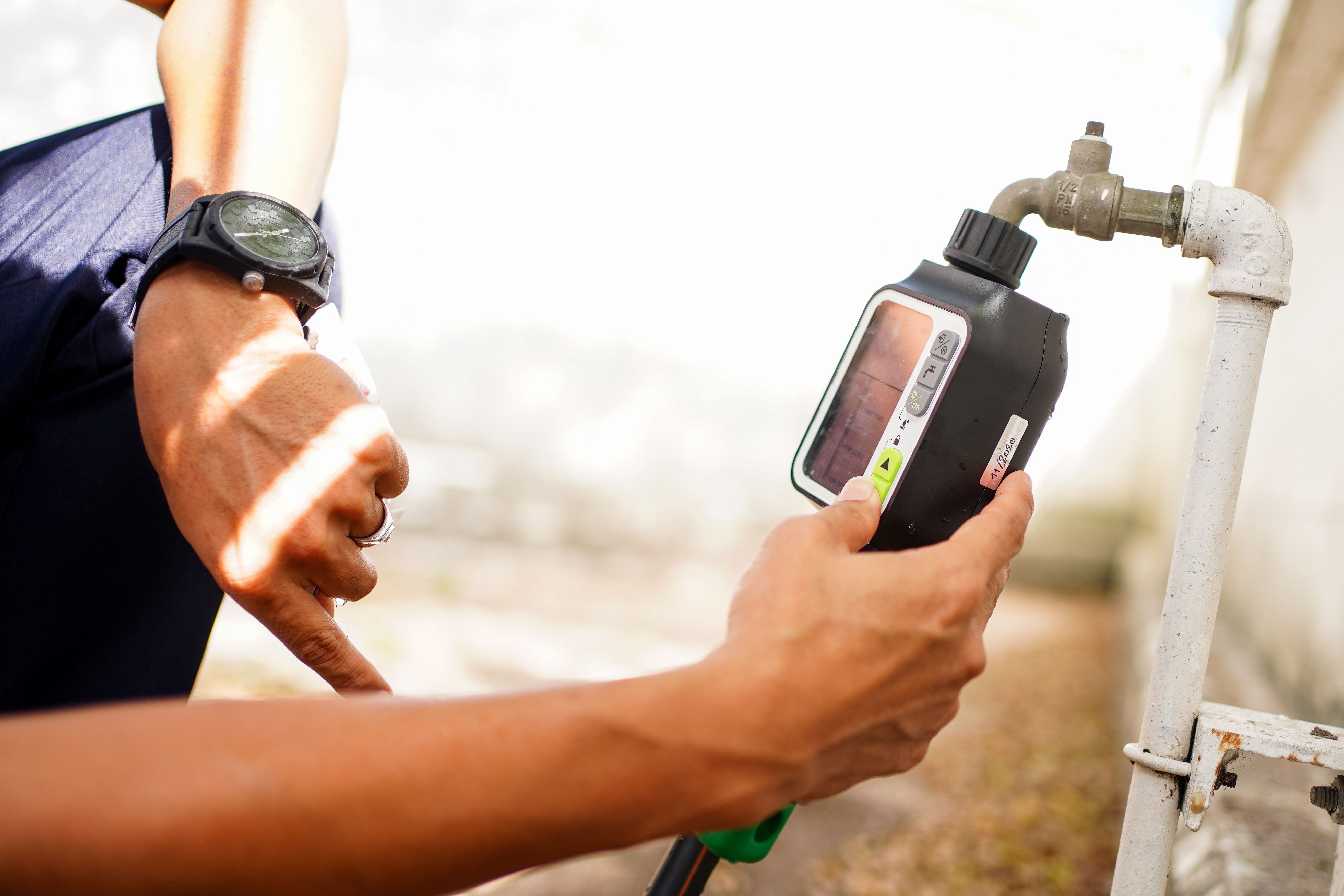

Relatively simple to use, it is ideal for lawns or for a small drip system. Connected directly on the tap, it is very easily installed. Depending on the model you can set one or more watering time slots of different durations. The basic models have a simple wheel, while the most complex ones are equipped with a LCD display showing the selected time slots, battery status etc. The top of the line models have additional features like humidity sensors can accommodate additional accessories such as a humidity sensor or raingauge that alters watering based on rainfall..
The multi-valve controller is the same as the single-valve controller except that it has several channels, which makes it more complex but vastly more efficient.
The exact replica of a single-valve controller, attaching directly to the tap, but offerss additional valves. Ideal for watering several varied types of areas (a lawn and a vegetable patch or a lawn and a flowered bed) that do not require the same type or frequency of watering.
The infamous irrigation station. Connected directly to the water line, the top of the line remote controllers boasts the use of up to 15 different channels. All commands are executed by magnetized valves which open or close according to the user's request. Each part of your garden can be treated independently. Often used in conjunction with a humidity sensor or a rain gauge, it ensures optimal watering and saves a considerable amount of water.All timers attache to the garden hose and tap through connections.
How to achieve optimal watering for your garden?
As we have discussed, setting up an automated system for your watering needs has several advantages. Apart from never forgetting to water, the drop in water consumption can be substantial.
Interrupting or canceling watering when it's raining is a job for rain gauges and humidity probes. When connected to your timer, they will override it if necessary to stop watering. Obviously, you will need to select a controller that can accommodate any desired external accessories. Equip yourself with a rainwater recuperator and a pumping system for pressurizing the water.
Today, some smart controllers are "connected". They let you access realtime data on the amount of water used, change the settings, view battery status and even see your installation from the comfort of your tablet or smartphone!
