If you want to build with brick, concrete and stone, you'll need the right masonry tools! There are dozens of handy tools on the market including trowels, chalk lines, chisels, hammers, square and wheelbarrows. From spirit levels to mixing buckets, read on to find out more about all these essential masonry tools.
- Cement mixer
- Straight edge
- Plasterers bath
Measuring and levelling tools
When performing any kind of masonry work, it is essential to check that everything is lining up with your plans as you go. This, of course, means measuring distances and checking your angles to ensure that everything is square, plumb, and level. Luckily, there are plenty of tools designed to help you out!
There are various measuring tools out there including foldout rules, retractable tape measures and electronic distance measures. However, a 3-metre tape measure will suffice for the vast majority of tasks.
A high-quality tape measure will have a robust case and solid tape. For measuring larger distances, go for an extra long tape measure.
Straight edges can be used to line up elements, check straight edges or level material while pouring concrete slabs.
Aluminium models are lightweight and easy to handle. These tools generally measure about 2 cm in thickness, 10 cm in width, and 1 to 5 m in length.
Squares are metal brackets that can be as long as 1 metre on each side. Fixed at a 90° angle, these tools are used to ensure that all of your corners and angles are square.
Spirit level and/or plumb line
A plumb line features a weight (called a plumb bob) that is suspended from a string. These tools are used to measure how plumb (or vertically aligned) a surface is. However, a spirit level can be used in place of a plumb line for most applications.
Taking accurate measurements is great, but you'll also have to be to record them! Here are a few tools used to mark out your measurements.
A builder's line allows you to visualise a straight line or level surface. It's a simple tool that consists of a string stretched between two points and can be used for tasks such as lining up the posts of a fence, the edges of a wall or the boundaries of a walkway.
A chalk line works just like a builder's line but is also equipped with chalk which transfers a visible line onto the surface when the line is snapped against it.
This coloured chalk is used to replace the chalk in a chalk line. It is usually blue or red in colour, and should be kept away from moisture.
Line marking sprays
Lining marking sprays are weather-resistant and especially handy for marking out foundations.
These sprays come in a range of colours including fluorescent shades!
Markers, chalks and pencils
Markers, chalk, and pencils come in a range of sizes and tips which vary in terms of applications and accuracy. Markers and pencils work well for materials such as wood and plasterboard, but chalk is preferable on coarse surfaces such as concrete, brickwork, and stone.
Markers, chalk, and pencils
Bricklaying and plastering tools
Bricklaying and plastering tools are some of the most important equipment in masonry work.Trowels

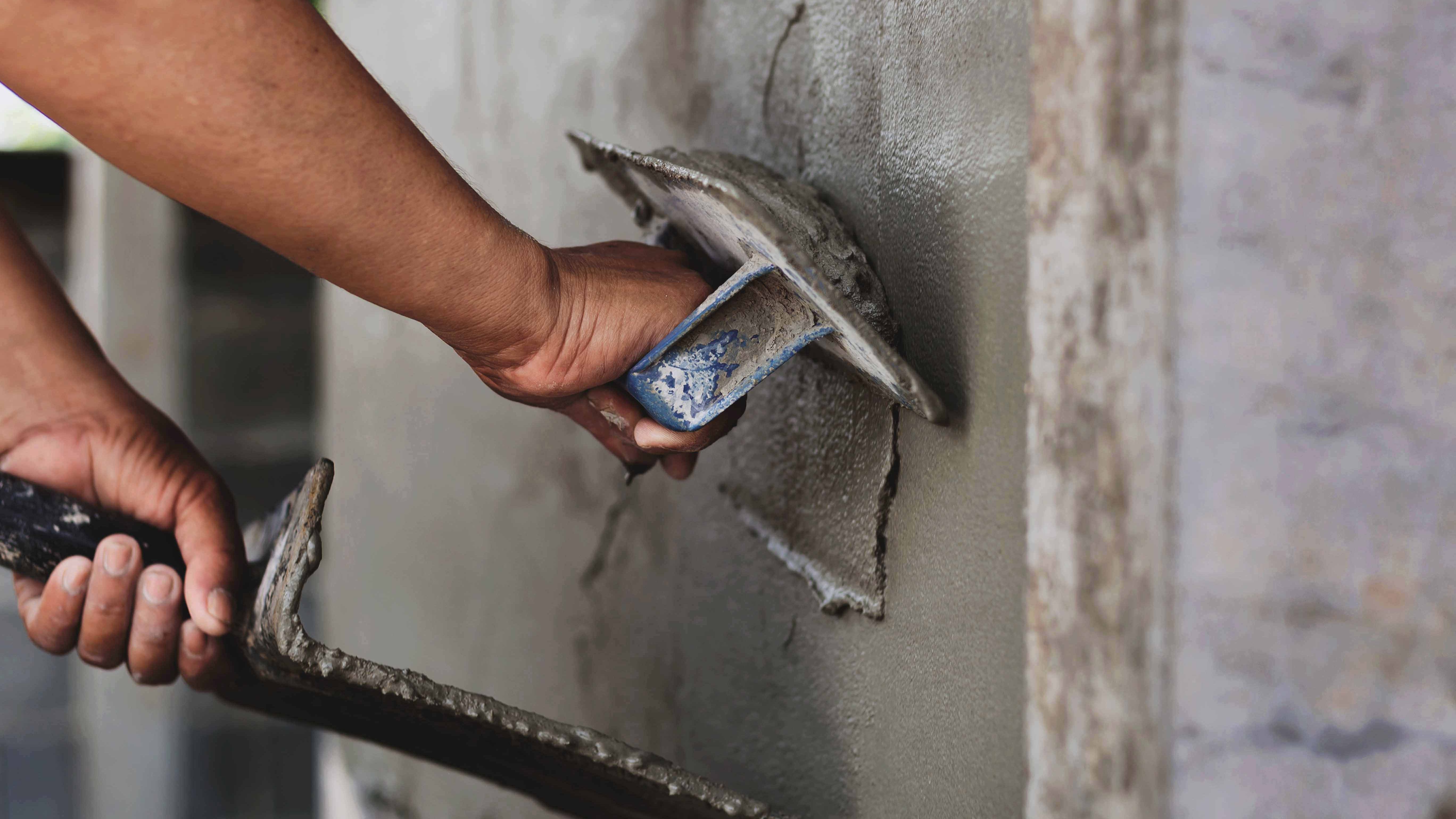

Trowels come in a number of different shapes (round, square, pointed, trapezoid, etc.) and sizes. They are used to apply, spread or smooth out a variety of mortars and plasters.
They can also be used to fill in holes or to mix small amounts of cement. Their handles can be made of wood or composite materials, the latter of which provides more ergonomic designs.
This type of trowel, also known as a float trowel, consists of a flat surface with a handle on one side. It can be used as a tray for carrying mortar or plaster up to a height orto smooth, level or texture a top coat.
Clamps can be used for a wide variety of tasks, such as holding formwork or guide rails together while your concrete, mortar or plaster dries. Adjustable clamps can usually be tightened and loosened by hand. Choose a clamp made entirely of metal for masonry work.
Dutch pins are kind of like large nails that are used to temporarily hold things like straight edges, rules and profiles, and can stand in for a clamp.
Plasterer's baths are containers used to mix mortar or plaster. Usually made of plastic, these mixing baths come in different sizes depending on the scale of your project.
Plastic models are cheap but tend to break easily, while sturdier rubber models are more resilient yet flexible.
Like mixing baths, buckets can be made of plastic or rubber and are usually used to mix smaller amounts of mortar or plaster.
Wheelbarrows are essential for transporting large amounts of materials (sand, gravel, cinder blocks, etc.), tools, and different bonding materials (concrete, mortar, plaster, etc.).
Models vary but generally have a volume of 90 to 100 litres, and are able to carry about 200 kg. The material of the wheelbarrow may also differ; opt for galvanised steel for a long-lasting purchase.
Cement mixers can be manual, electric, or petrol-powered and are used to mix materials such as concrete, mortar or plaster in large volumes.
The capacity of the drum will vary, as will the number of mixing paddles.
A builder's sieve is made up of a round wooden frame that holds mesh of various sizes in place.
Its role is to filter aggregates.
A rendering machine is used to spray plaster or render onto a surface.
These machines feature a metal body and a handle that's used to control the spray gun.
Demolishing or digging up stone or brickwork requires specific tools.
A mason's chisel can be used to square the edges of gaps, cut bricks or shape stone.
These tools come in a variety of shapes and sizes for a wide range of tasks. The striking end is often rounded to protect your hand.
The mason’s hammer features a chiselblade opposite the striking surface for chipping off small amounts of stone or brick.
The handle can be made of wood, composite materials, or metal.
A stoning hammer is handled like an ordinary hammer but has a head mass of about 1 to 2 kg.
Crowbars can measure up to 2 m and can feature flat or pointed ends. They are useful for demolition work or providing leverage.
The 'power version' of a chisel is a hammer drill or, for large-scale demolition, a jackhammer!
Additional tools you may need
Of course, you will need also need to get your hands on a range of more general use tools, such as a shovel.
It goes without saying that your tools should all be thoroughly rinsed after each use to keep them in top working condition. And remember: big things are built one brick at a time!
